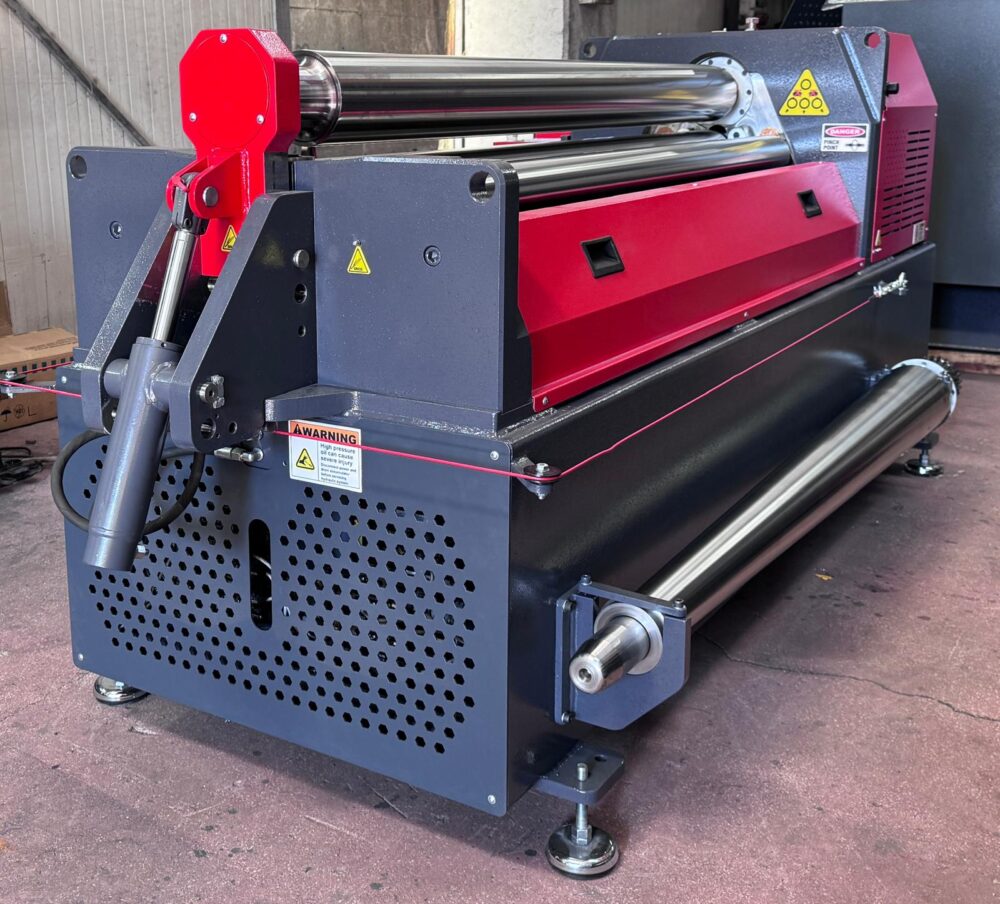

Our R-FAB series 4-roll bending machines have a compact design and robust frames built with high-quality solid steels. The rolls are powered hydraulic cylinders and syncronization controlled with the PLC. The rotation of the top and bottom rolls is powered by an AC motor and helical gearbox with brake.

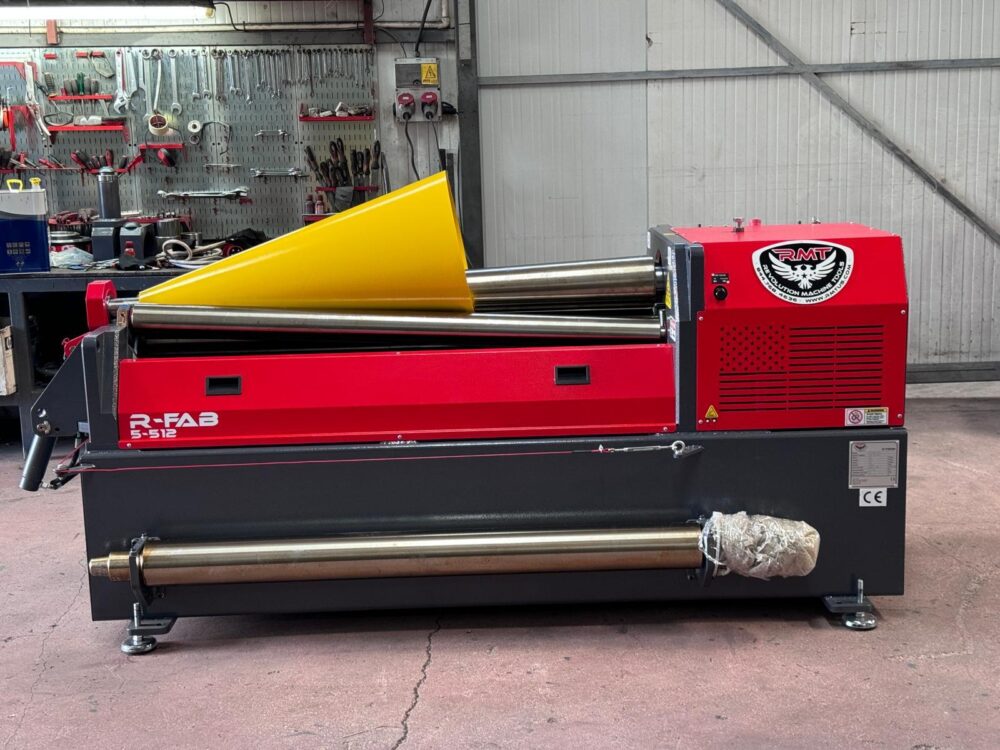

This is an ideal plate roll bending machine for shops that need an easy-to-operate machine using a 4-roll design and working with light gauge materials ranging from 20 Ga to 1/4”. These machines come standard with tiltable side rolls for rolling a cone-shaped parts. Additionally, changing the top roll on this machine is very easy. For example, you can replace a 5” diameter top roll with an 3” diameter top roll in minutes. You won’t be stuck when needing to bend thinner sheets with a smaller diameter. The R-FAB plate rolls are available in lengths from 2’ to 6’, making it very flexible for a wide range of applications, so you can get the right machine for your needs.
The most important element of a plate roll machine are the rolls themselves. Most machines in the market have weak rolls that deform during the bending process, especially when trying to roll tight diameters. RMT uses high tensile forged steel rolls that are machined by high precision CNC lathes. Working surfaces of the rolls are CNC induction hardened to HRC 54-58 (5-6 mm deep) with hardness tests performed at varying points on the rolls. Rolling 1.1 x top roll diameter is easily achieved. The rolls are machined with a crown to compensate for roll deflection during the bending process and RMT plate rolls are built to minimize flat spots.
