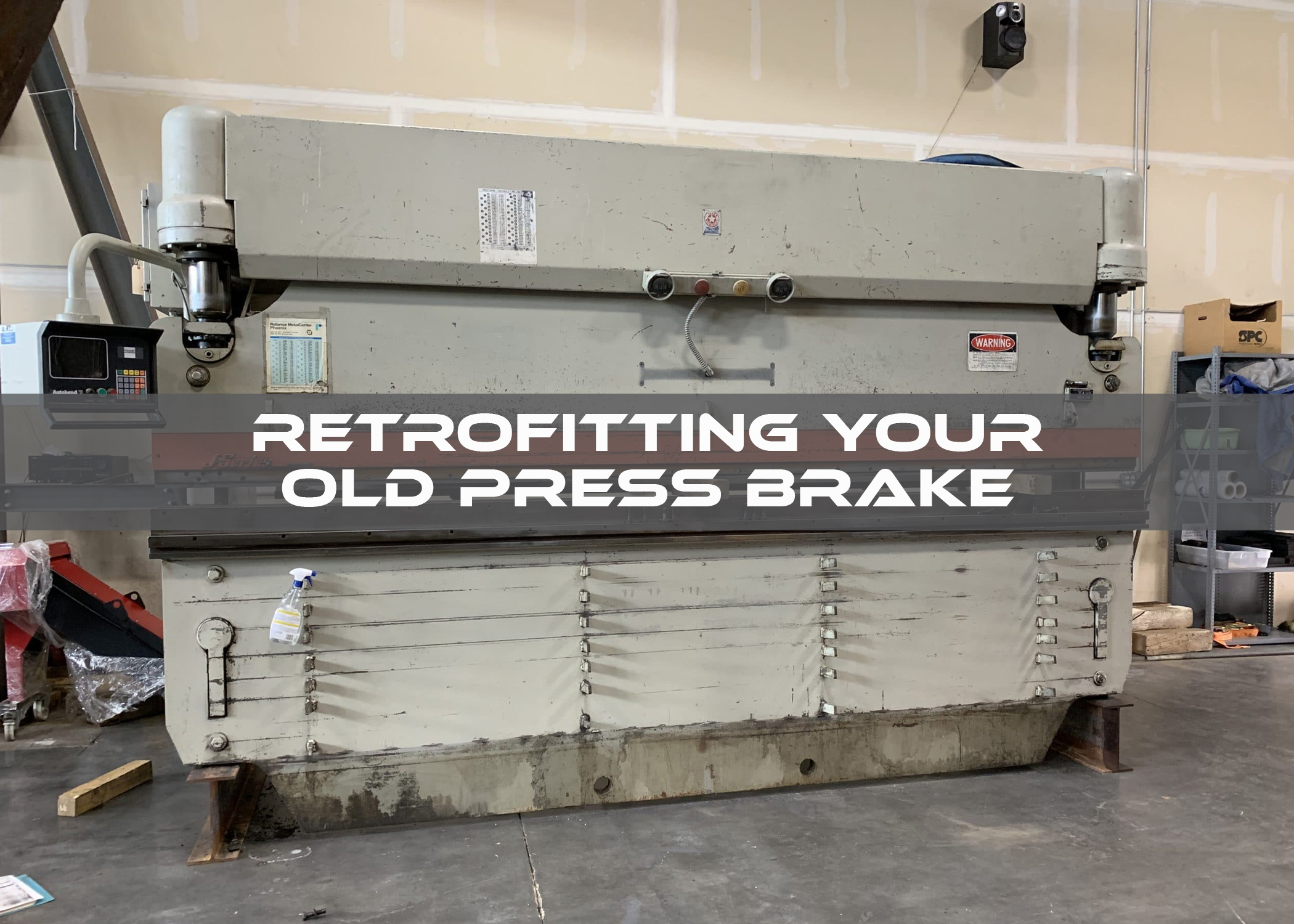

Retrofitting an old press brake can significantly enhance its performance, accuracy, and safety, often at a fraction of the cost of purchasing a new machine. The process involves updating components, integrating modern technology, and addressing any wear or damage to the existing equipment. The following are some suggested steps to take when retrofitting your old machine.
Assess the Current Condition
Before beginning the retrofit, perform a comprehensive evaluation of your press brake’s current state. This includes:
- Structural Integrity. Inspect the frame, ram, and bed for cracks, warping, or excessive wear.
- Mechanical Components. Check for wear on gears, bearings, and other moving parts.
- Hydraulic System. Evaluate the condition of cylinders, pumps, hoses, and seals.
- Electrical Systems. Examine wiring, switches, and control panels for damage or obsolescence.
Document any deficiencies or areas that need improvement to create a clear roadmap for the retrofit.
Define the Goals of the Retrofit
Clearly establish what you aim to achieve with the retrofit. Common objectives include:
- Improving precision and repeatability.
- Increasing operational efficiency and throughput.
- Enhancing safety features.
- Integrating modern control systems.
- Extending the machine’s lifespan.
Understanding these goals will guide the selection of components and technologies to incorporate.
Upgrade the Control System
One of the most impactful changes in a retrofit is replacing outdated control systems with modern CNC (Computer Numerical Control) units. CNC systems provide:
- Improved Accuracy. Better control over positioning and bending angles.
- Program Storage. Ability to store multiple bending programs for repeat jobs.
- Ease of Use. User-friendly interfaces with touchscreens and graphical programming.
- Integration. Capability to connect with other shop floor systems for improved workflow.
Choose a CNC system compatible with your press brake’s size and complexity, and ensure it supports future updates.
Replace or Enhance Hydraulic Systems
If the press brake uses a hydraulic system, consider the following upgrades:
- New Seals and Hoses. Prevent leaks and ensure reliability by replacing worn seals and hoses.
- Proportional Valves. Improve control over hydraulic pressure and flow for more precise operation.
- Servo-Hydraulic Systems. Replace traditional hydraulics with servo-driven systems for higher efficiency and reduced energy consumption.
A modern hydraulic system can significantly improve performance and reduce maintenance costs.
Upgrade Safety Features
Retrofitting offers an opportunity to enhance safety measures in compliance with current regulations. Consider installing:
- Emergency Stops. Update or add emergency stop buttons at accessible locations.
- Safety Guards. Install physical barriers around hazardous areas to protect operators.
- Light Curtains. Prevent operation when an object or hand is detected in the working area.
- Two-Hand Controls. Ensure both hands are engaged during operation, reducing the risk of accidents.
These upgrades not only protect workers but also reduce liability and improve overall efficiency.
Refurbish Mechanical Components
Address worn mechanical parts to ensure smooth and accurate operation:
- Ram and Bed. Resurface or replace components to eliminate unevenness.
- Gibs and Guides. Repair or replace worn gibs and guides to reduce play and improve precision.
- Drive Mechanism. Upgrade gears, belts, or chains if they show signs of wear or inefficiency.
Proper maintenance of these components ensures the longevity and reliability of the press brake.
Enhance Tooling Capabilities
Modern tooling options can expand the functionality of an older press brake. Consider:
- Quick-Change Tooling. Reduce setup time by enabling faster tool changes.
- Segmented Tools. Accommodate complex bends and varied part sizes.
- Precision Ground Tools. Improve bending accuracy and reduce material waste.
Investing in high-quality tooling can maximize the performance gains from the retrofit.
Add Automation Features
To increase productivity and reduce manual labor, incorporate automation:
- Backgauges. Install or upgrade programmable backgauges for precise positioning.
- Robotic Integration. Equip the press brake with robotic arms for loading, unloading, and positioning.
- Material Handling Systems. Add conveyors or other systems to streamline workflows.
Automation not only improves efficiency but also reduces the risk of operator error.
Implement Monitoring and Diagnostic Tools
Modern diagnostic systems can provide real-time monitoring of the press brake’s performance and condition. Features to consider include:
- Load Monitoring. Track force applied during bending to prevent overloading.
- Condition Monitoring. Use sensors to detect wear or potential failures in key components.
- Data Logging. Record operational data for analysis and optimization.
These tools help in maintaining the machine proactively and minimizing downtime.
Train Operators and Maintenance Staff
Once the retrofit is complete, ensure that all personnel are trained on the updated machine. Training should cover:
- Operating Procedures. Understanding new controls and features.
- Safety Protocols. Proper use of enhanced safety systems.
- Maintenance Requirements. Routine checks and servicing of new components.
Well-trained staff can maximize the benefits of the retrofit and ensure safe, efficient operation.
Test and Validate the Retrofit
Before returning the press brake to full production, conduct thorough testing to validate the retrofit:
- Performance Testing. Verify accuracy, repeatability, and speed under load.
- Safety Checks. Test all safety features to ensure compliance with regulations.
- Stress Testing. Operate the machine at varying loads and conditions to confirm reliability.
Address any issues identified during testing before resuming normal operations.
Establish a Maintenance Plan
A successful retrofit should be followed by a proactive maintenance plan to keep the old press brake in optimal condition. This includes:
- Regular inspections of mechanical and hydraulic systems.
- Periodic calibration of CNC and other control systems.
- Scheduled replacement of wear items such as seals and hoses.
A well-maintained machine will deliver consistent performance and a longer service life.
A Like-New Press Brake
Retrofitting an old press brake is a cost-effective way to modernize your equipment and improve operational efficiency. By following the above steps, you can ensure that the retrofit process is thorough and effective, addressing both current deficiencies and future requirements. Whether upgrading controls, enhancing safety, or integrating automation, a well-planned retrofit can transform an aging press brake into a highly productive and reliable machine that will last for years to come.
